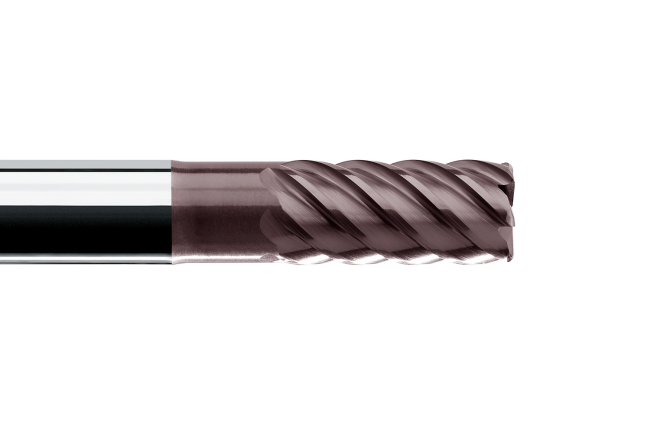

VHPMR 6 100 078 10 40 050

Article number VHPMR61000781040050
Cutting diameter 10,0 mm
Shank diameter 10 mm
Total length 78 mm

Van Hoorn Carbide

Need Advise, Contact Us

Details

HPM HSM Meersnijder 10x70 R=1,0 Z=6 TiAlN+

Additional Info

d  (Cutting Diameter) 10,0
r  (Corner radius) 0,5
d1  (Shank diameter) 10
d1a  (flat surface diameter) N/A
L  (Total length) 78
L1  (Cutting length) 22
L2  (Relief length) 30,00
L4 N/A
z  (Number of flutes) 6
a 0,3
b N/A
γ N/A
M  (Thread) N/A
P N/A
Centre cutting No
Helix angle 45
ß°  (Apic Angle) N/A
Tolerance  (in diameter) f7
Counterclockwise rotation N/A
Specifications
d  (Cutting Diameter) 10,0
r  (Corner radius) 0,5
d1  (Shank diameter) 10
L  (Total length) 78
L1  (Cutting length) 22
L2  (Relief length) 30,00
z  (Number of flutes) 6
a 0,3
Helix angle 45°
Tolerance  (in diameter) f7
Cutting information Calculator Downloads

Downloads

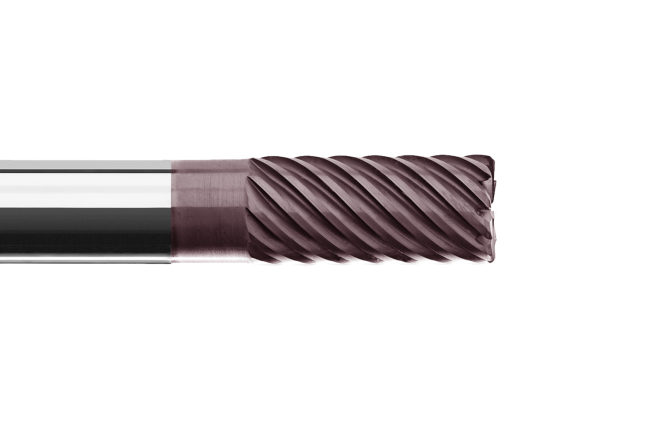

Related end mills
