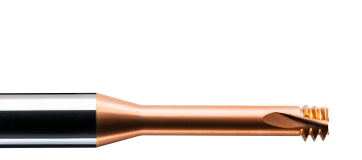

VHTMM 4 M240 102 18 40
Loading...
Zoom

VHTMM 4 M240 102 18 40

Article number VHTMM4M2401021840
Cutting diameter 18,0 mm
Shank diameter 18 mm
Total length 102 mm

Van Hoorn Carbide

Need Advise, Contact Us

Details

Draadfrees 18,0x102 L1=8,6 Z=4 TiAlN Gold

Additional Info

d  (Cutting Diameter) 18,0
r  (Corner radius) N/A
d1  (Shank diameter) 18
d1a  (flat surface diameter) N/A
L  (Total length) 102
L1  (Cutting length) 8,6
L2  (Relief length) 50,00
L4 N/A
z  (Number of flutes) 4
a 1,95
b N/A
γ 15
M  (Thread) M24
P 3
Centre cutting N/A
Helix angle N/A
ß°  (Apic Angle) N/A
Tolerance  (in diameter) h5, f7
Counterclockwise rotation N/A
Specifications
d  (Cutting Diameter) 18,0
d1  (Shank diameter) 18
L  (Total length) 102
L1  (Cutting length) 8,6
L2  (Relief length) 50,00
z  (Number of flutes) 4
a 1,95
γ 15
M  (Thread) M24
P 3
Tolerance  (in diameter) h5, f7
